Product Details
Main performance and service conditions:
1. Working temperature: -5 (+40 (+30 (%) Relative humidity: <90%)
2. Atmospheric Pressure: 70Kpa-106 Kpa Storage and Transportation Temperature: 40 C+70
3. Photoelectric performance: insertion loss < 0.2Db; additional loss < 0.2B: echo loss 45dB; additional loss < 5dB; insertion durability life > 1000 times
4. Electrical Performance: Insulation Resistance (> 1000M 500V)
5. Electrical strength: able to withstand 3000V (direct current) / 1min non-breakdown/arc phenomenon
Indicators of applicability:
1. The nominal working wavelength is 850 nm/1310 nm/1550 nm.
2. Fiber optic cable conforms to GB/T 1819 and GB/T 7424 specifications.
3. Fiber optic connectors conform to GB12507 and related standards and specifications.
Function:
1. Strong cable fixing and protection function can ensure that the cable and fiber are not damaged, and reliable grounding device.
2. The advanced optical fiber wiring management and design device ensures the convenience of installation, construction and maintenance of optical fiber wiring and core.
3. Having clear line sequence identification, it is easy to transfer, jump and test.
Characteristics:

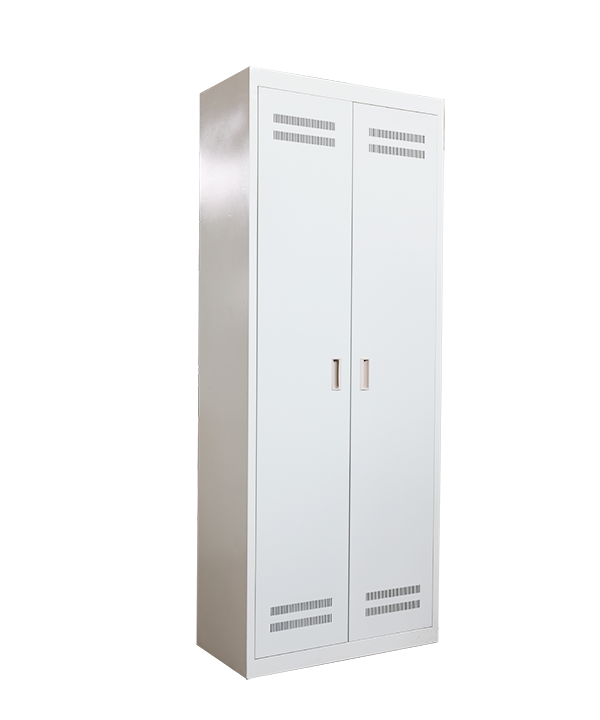

1. The cabinet is installed in 19 inch standard, which is divided into two types: optical fiber cabinet (GPX72-2200)/optical fiber cabinet (GPX72-2000).
2. Configuration of push-pull and melt-fit integrated unit of our company, and optional distribution wiring unit and centralized melt-fit unit (see the latter unit).
3. It can simply adjust the panel to reach up and down cable, reliable inlet device and core protection device.
4. Configuration capacity is large, and there is strong wiring space.
5. Closed cabinet, front and back door.
